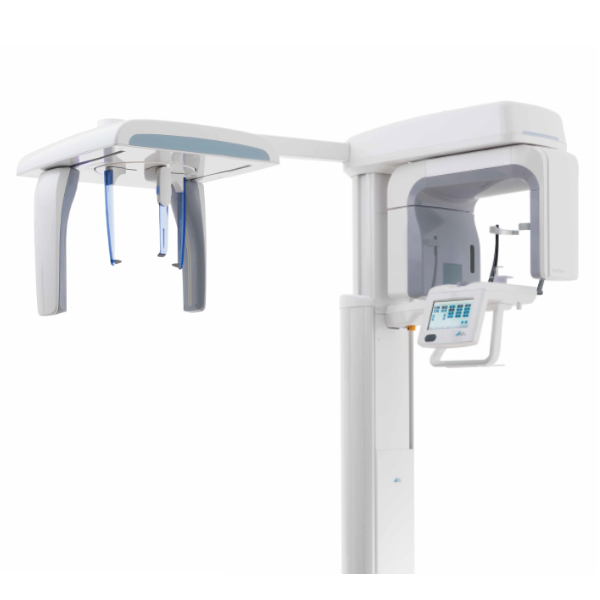

Vista Pano S Ceph

Vista Pano S Ceph

Quick cephalometric projections with low X-ray dose

Quick cephalometric X-ray images with excellent image quality are achieved with the new VistaPano S Ceph and with the lowest possible dose. The reason for this is the extreme short scanning time of the line sensor – 4.1 senconds only – which significantly reduces the risk of motion blur. For young patients undergoing orthodontic treatment, the combination of low X-ray dose and short scanning time presents a considerable advantage. The two high-end CsI sensors – for panoramic X-ray and Ceph projection – already integrated in the unit eliminate the time-consuming switching of the sensor, and thus the risk of damage. All this makes VistaPano S Ceph the ideal X-ray solution for orthodontic surgery and maxillofacial surgery. In addition, the VistaPano S Ceph offers you all functions and advantages of the VistaPano S.

This is what counts:

  • Very fast scan in 4.1 seconds (lat. head)
  • Excellent image quality
  • Low radiation dose
  • No sensor change, 2 high-end CsI sensors are integrated

Description

Low X-ray doses – high efficiency

The new VistaPano S Ceph produces fast Cephalometric exposure of excellent quality with minimal radiation doses: all thanks to the extremely short scanning time of 4.1 seconds. This reduces the risk of motion fuzziness. A combination of low X-ray dose and short scanning time is especially advanta-geous with younger orthodontics patients. The integration of two high-end CsI sensors – for the panoramic X-ray and Ceph functions – eliminates the time-consuming switching of the sensor, thereby reducing the risk of damage. All this makes VistaPano S Ceph the ideal X-ray solution for orthodontic surgery and maxillofacial surgery. The VistaPano S Ceph also provides all the functions and advantages of the VistaPano S.

Features

▪ A very fast scan time of 4.1 seconds (lat. head)
▪ Excellent image quality
▪ Low radiation dose
▪ The 2 integrated high-end CsI sensors mean no sensor change

Short scanning time, low X-ray dose, excellent image quality

The short scanning time of only 4.1 seconds means that the patient is exposed to the lowest possible radiation dose. The modern high-sensitivity CsI sensors enable excellent image quality despite this low radiation dose. Ceph X-ray programs In addition to the 17 panoramic programs, further additions facilitate all cephalometric exposures:
▪ Lateral head L
▪ Head PA
▪ SMV (submentovertex)
▪ Waters View

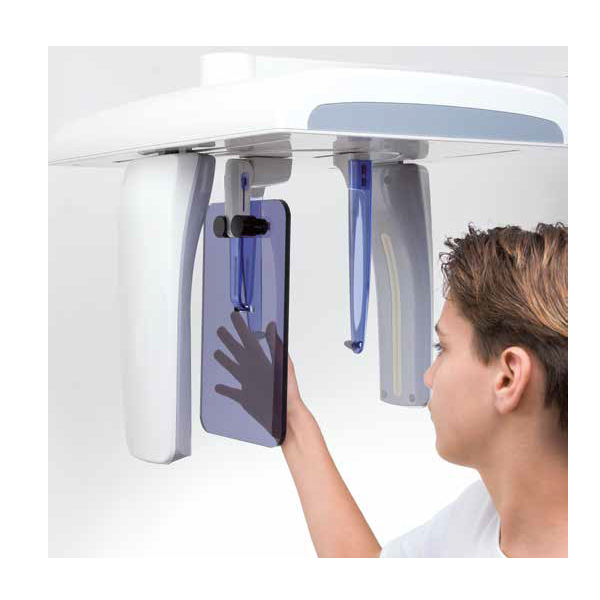

▪ Hand

Optimum workflow

The VistaPano S Ceph is fitted with two high-end CsI sensors, obviating the need for complicated switching between panorama mode and the Ceph device. To start Ceph recording, all you need to do is to set the corresponding program mode.

Technical Data VistaPano S Ceph
X-ray HV generator
Voltage, current 50 – 99 kV, 4 – 16 mA
Tubes
Focal spot 0.5 mm (IEC60336)
Total filtration 2.8 mm Al eq.
Image detector
Model CsI sensor
Pixel size 100 μm
Active sensor size 5.9 x 230.4 mm
Frame rate 200 fps
Scan times
Scan times From 4.1 to 12.9 secs.
Ceph program scanning times Lateral head radiograph in quick scan mode: 4.1 sec.
Magnification factor
Magnification factor 1.14
Device dimensions
Maximum height 2280 mm
Weight (without/with foot) 129/179 kg
Height adjustment range 700 mm
Width x depth x height 1940 x 1220 x 2280 mm
Installation Wall mounting or foot
Electrical connection
Mains voltage 200 – 240 V AC
Frequency 50/60 Hz
Rated power 2.2 kVA
